| Name： |

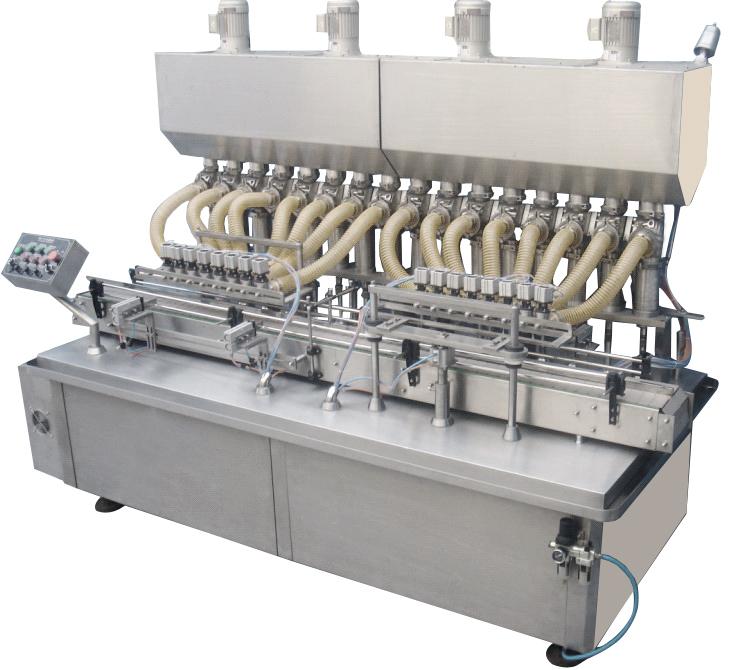

Four nozzles high viscosity filling machine |
| Model： |
JT-F4 |
| Category： |
|
|
| Describe： |
|
Application :
Sauce, Salad, Butter & Margarine, Ketchup, Jams, Cream, Honey, shampoos etc.
Technical Parameter:
| ITEMS |
JT-F4 |
JT-F6 |
JT-F8 |
JT-F12 |
JT-F16 |
| Filling nozzles |
4 |
6 |
8 |
12 |
16 |
| Filling range |
20-5000ml |
20-5000ml |
| Ideal filling range |
20-100ml/50-250ml/100-500ml/200-1000ml/500-2500ml/1000-5000ml |
| Filling speed(100ml)bpm |
30-40 |
40-60 |
60-70 |
70-100 |
90-120 |
| Filling precision |
20-1000ml:≤±1% 1000-5000ml:≤±0.5% |
| Air pressure range |
0.4-0.6MPa |
| Air consumption |
10m³/h |
15m³/h |
20m³/h |
30m³/h |
40m³/h |
| Power supply |
220V 50/60Hz |
| Power consumption |
0.75Kw |
0.75Kw |
1.2Kw |
2.2Kw |
2.2Kw |
| Single machine noise |
≤50dB |
| Net weight |
550Kg |
900Kg |
1150Kg |
1500Kg |
1750Kg |
| Overall dimension（mm) |
2000*1000*2000 |
2000*1000*2000 |
2500*1000*2000 |
2500*1000*2000 |
3000*1200*2000 |
Principal Features :
- Adopt piston pump to fill high precision, large range of adjusting dosage.
- It allows to adjustment of filling volume for all filling pumps at the same time, also for minor adjustment of each filling pump to achieve fill high volume accuracy.
- This pump system dont absorb the material, good chemical stability.
- Apply to fill various kinds of viscosity.
- Stainless steel rotary valve to fit to various kinds of viscosity product.
- Auto shut on/off filling nozzles, avoid leaking and foam.
- Header liquid hopper, auto level sensor control product supply.
- Frequency conversion control speed, auto count output, no bottle no fill.
- The whole machine is designed according to requirements of GMP.
|
|
|
|
